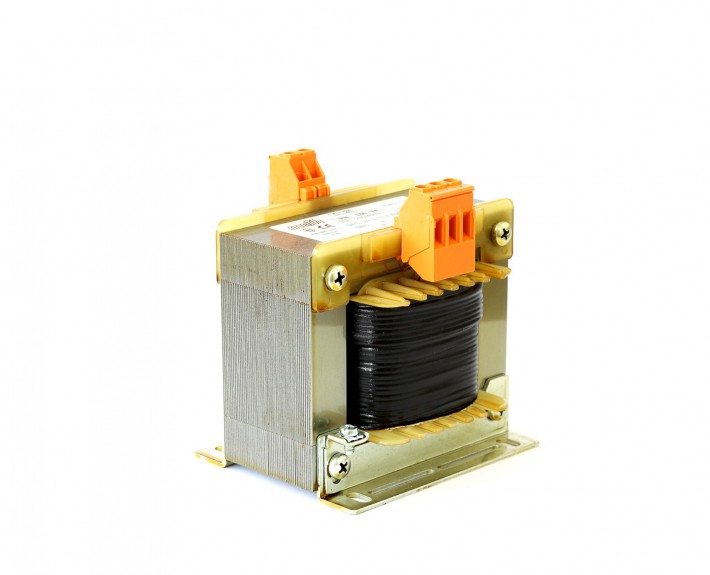

Low-voltage single-phase isolating
and safety transformers – class F
T1B

General Data

Rated Input Voltage | 230-400 V or others upon request

Rated Output Voltage | 24 V/115 V or others upon request

Rated Power | 30-2000 VA

Insulation Class | class F

Temperature Class | class F

Protection Degree | IP 00

Test Voltage | 4,2 KV/1′

Terminals | terminal blocks

____________________________________________

Application

Single-phase control, isolating and safety transformers designed combining reliable
performance and cost-effectiveness. They are completely impregnated with resin
and have faston or screw earth connection, 4 sqmm terminal blocks, input and output in
two sides. Construction in accordance with the below standards:

____________________________________________

Standards

CEI-EN 61558,2-4 – isolating transformers

CEI-EN 61558,2-6 – safety transformers

IEC 61558,2-4 and 2-6
