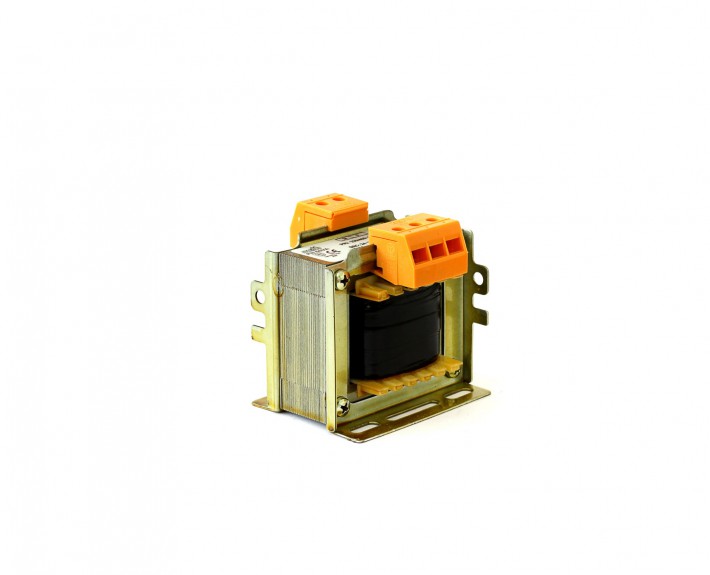

Low-voltage single-phase isolating
and safety transformers – class F
T1-IT
General Data
Rated Input Voltage | 230-400 V or others upon request
Rated Output Voltage | 24 V/115 V or others upon request
Rated Power | 30-2000 VA
Insulation Class | class F
Temperature Class | class F
Ambient Temperature | Ta=40°C
Protection Degree | IP 00
Test Voltage | 4,2 KV/1′
Terminals | terminal blocks
____________________________________________
Application
Single-phase control, isolating and safety transformers designed combining reliable
performance and cost-effectiveness. They are completely impregnated with resin
and input and output in two sides or in the same side. Construction in accordance with the
below standards:
____________________________________________
Standards
CEI-EN 61558,2-4 – isolating transformers
CEI-EN 61558,2-6 – safety transformers
IEC 61558,2-4 and 2-6
